Leader

Draw a leader using the default method. The current font is applied to the leader.

Mode Settings:

Setting Data Type Comments
Indicator Arrow | Point | None Specify indicator to use on leader head

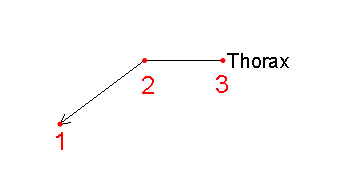

Default Method: Construct a leader from three points.

Prompt Data Type Comments
Point 1 Point Specify head
Point 2 Point Specify center
Point 3 Point Specify extension
Text String Specify text


Invalid State: Point1 = Point2 | Text Length = 0
