Polygon
Draw a polygon using one of three methods.
Mode Settings:
Setting
Data Type
Comments
Method
Circumscribed  Inscribed  Side Endpoints
Choose method
Sides
Integer > 2
Number of polygon sides

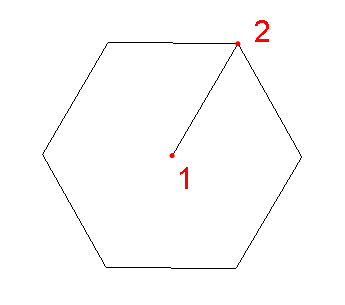

Circumscribed Method: Draw a circumscribed polygon.
Prompt
Data Type
Comments
Center
Point
Center of the polygon
Radius
Point or Distance > 0
Circumscribed radius of the polygon

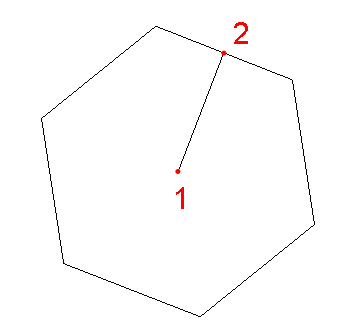

Inscribed Method: Draw an inscribed polygon.
Prompt
Data Type
Comments
Center
Point
Center of the polygon
Radius
Point or Distance > 0
Inscribed radius of the polygon

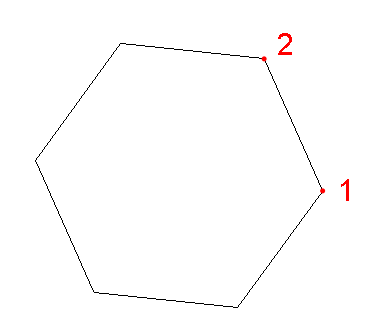

Side Endpoints Method: Draw a polygon from the endpoints of one side.
Prompt
Data Type
Comments
Point 1
Point
First endpoint
Point 2
Point
Second endpoint
Invalid State: Radius <= 0  NumSides < 3
